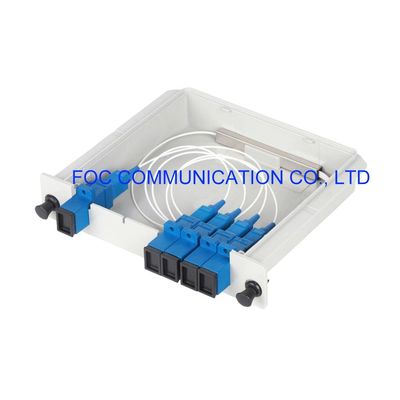

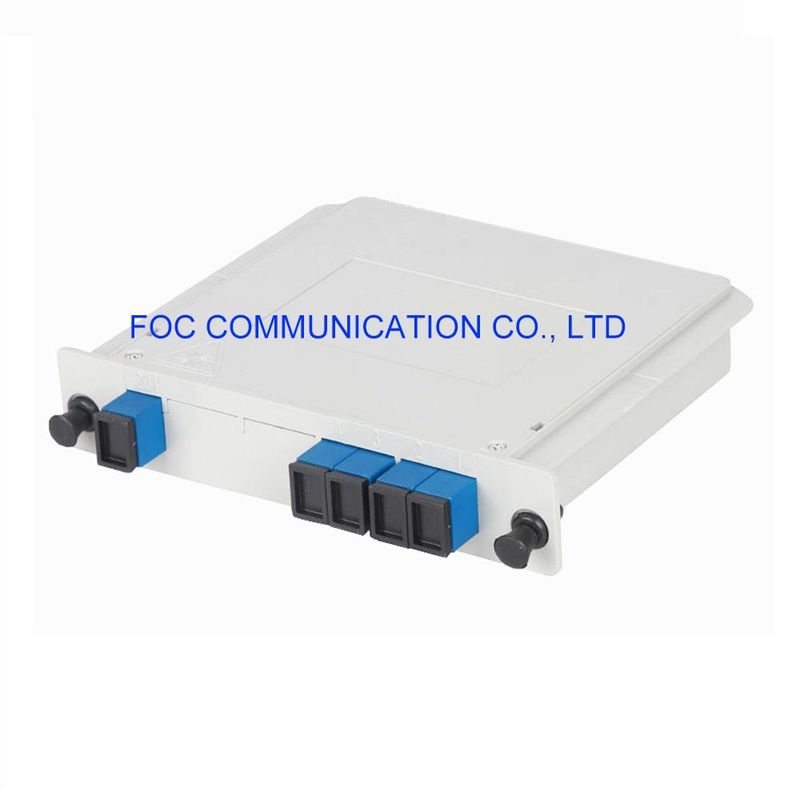

High Uniformity 1×4 Low PDL PLC Fiber Cassette SC UPC 1260nm

High Uniformity 1×4 Low PDL PLC Fiber Cassette SC UPC 1260nm

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO Certification and RoHS Compliant
Model Number: 1×4 PLC Splitter Cassette Type

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1pcs/carton box
Payment Terms: Western Union, T/T
Supply Ability: 90000PCS/MONTH
Get Best Price Contact Now

Detail Information

Port: 1*4 PLC Splitter Package: Cassette Type PLC Splitter
Connector: SC/UPC Wavelength: 1260-1650nm
Application: FTTH FTTB FTTX Network Certification: CE RoHS FCC
High Light:

Low PDL PLC Fiber Cassette

,

High Uniformity PLC Fiber Cassette

,

1260nm 1×4 PLC Splitter

Product Description

Fiber PLC Splitter Cassette Box SC / UPC , 1×4 Passive Optical Splitter Low PDL
FOC COMMUNICATION CO., LTD can produce many serials of PLC splitters including 1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package,

Bare Fiber PLC Splitters
Blockless Fiber Optical PLC Splitter
ABS box Fiber Optic PLC Splitter
LGX Box Optical PLC Splitters
Cassette Box PLC Splitter
Pallet Type Optical Fiber PLC Splitter
Rack Mount PLC Splitter for PON application
Wall Mount PLC Splitters


Cassette type: installed in 19 inch standard rack; in fiber branch home, installation device is provided in the optical fiber cable transfer box; branch home, installed customer specified equipment.



Features

1x4, 1x8, 1x16, 1x32 and 1x64 configurations available

2x4, 2x8, 2x16, 2x32 configurations available

Telcordia GR-1209 & GR-1221 qualified

Low insertion loss, PDL, Back Reflection

High uniformity

Compact package



Applications

CATV Systems
Optical Signal Distribution
Test Equipments

FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)


Optical Specifications

Parameter Unit Specification (P Grade)
Channel Number   1X2 1X4 1X8 1X16 1X32 1X64
Operation Wavelength nm 1260~1650
Insertion Loss (Max.) dB 4.3 7.4 10.7 13.9 17.2 21.5
Uniformity (Max.) dB 0.5 0.8 1.0 1.4 1.6 2.0
Polarization Dependent Loss dB 0.2 0.3 0.3 0.3 0.3 0.5
Return Loss dB ≥50
Directivity dB ≥50
Operating Temperature -40~+85
Storage Temperature -40~+85



Parameter Unit Specification (P Grade)
Channel Number   2X2 2X4 2X8 2X16 2X32 2X64
Operation Wavelength nm 1260~1650
Insertion Loss (Max.) dB 4.3 7.6 11.0 14.8 17.9 21.5
Uniformity (Max.) dB 0.8 1.0 1.2 1.5 1.8 2.0
Polarization Dependent Loss dB 0.2 0.3 0.3 0.3 0.3 0.5
Return Loss dB ≥50
Directivity dB ≥50
Operating Temperature -40~+85
Storage Temperature -40~+85

Note: All the data above does not include connectors.



Ordering Information

PLC















Port

Fiber Type

Input

Output

Pigtail Length

Connector





PLC

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64

1=G652D, 2=G657A

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

05-20=0.5--2.0m, 0=Adapter, X=Others

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others
